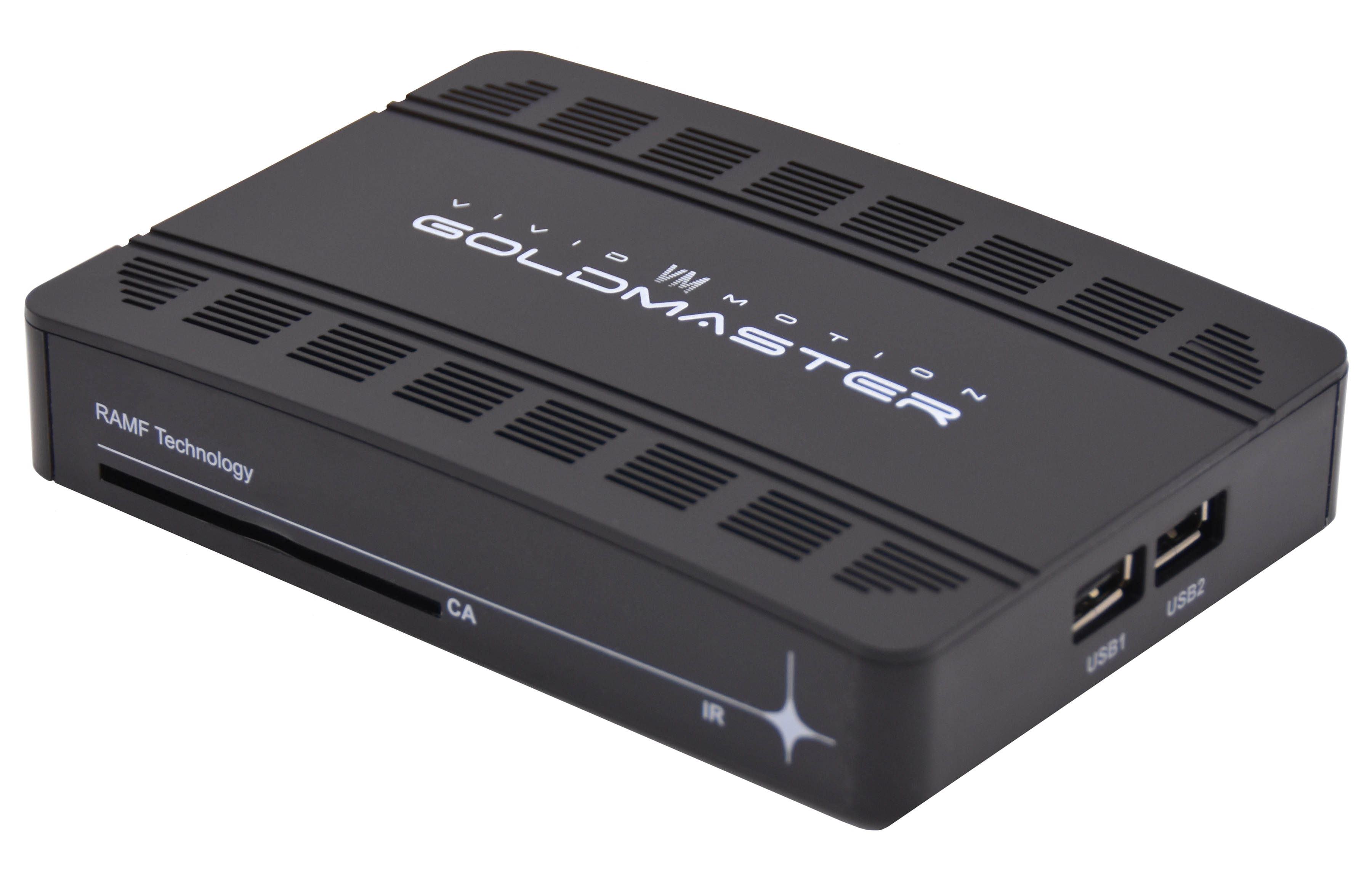

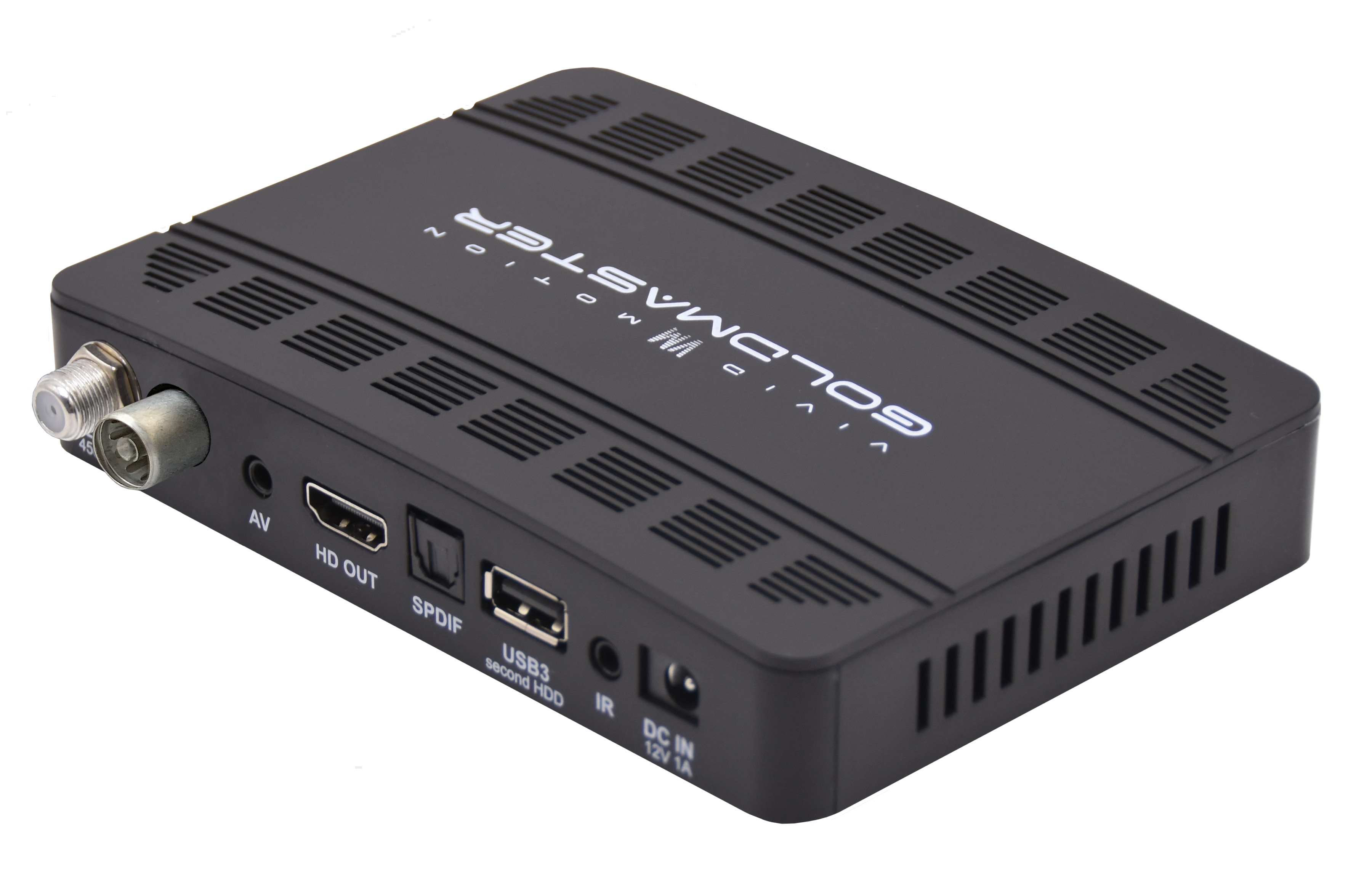

R.A.M.F. 201 Combo

Regular options
MPEG-4 +
HD +
HEVC +
DVB-S2X +
DVB-T2/C +
CA +
CI/CI+ -
Wi-Fi Embedded, MT7601
Lan +
USB 3
RS-232 On the motherboard
HDMI +
AV Jack
S/PDIF +
ESD protection Optional
Display Optional
Internal + External IR +
Chipset Montage 2230M3
R.A.M.F. options
Sat Finder +
Spectrum +
DVB-T2 echo option Possible R&D within 2 months
3D R.A.M.F. LNB support +
Reports with signal parameters +
Remote diagnostics (sending the report to the operator/installer) +
Fix-it-yourself instructions Possible R&D within 2 months
Measurements
Spectrum +
RSSI +
SNR +
PER +
LM +
Output voltage +
Signal interference +
Antenna vibration +
Voltage in the cable +
22kHz control signal attenuation +
DVB2IP Bridge options
Open Web API +
Watching DVB without TV set +
APK for Android +
